ZX-38 Reclosers

Embedded 2 voltage sensing capability for tie-point and renewable applications.
Proven modular design rated for 10,000 full load operations.
Hydrophobic Cycloaliphatic Epoxy insulation provides industry-leading reliability.
Supply communication networks with DNP3 Level 2, Modbus, and IEC 61850.
With 4 different setting groups, each is stored with individual setting values.

Download Catalogue

Specifications:

15.5kV 50/60Hz	Rated Current	Rated duration of short -circuit	Rated short- Circuit Break	Rated short- circuit	Rated impulse with- stand voltage	P.F. with- stand Voltage	Imped -ance μΩ	Creepage distance phase- to-earth	Leakage Phase- to-phase	Leakage phase- to-earth	Weight	Line Charg current	Cable Charg Current	Max. Open time / max. close time
15.5kV 50/60Hz	Ir A	Tk s	Isc kA	Ima kA	Up kV	Ud kV	μΩ	mm	mm	mm	kg	A	A	ms
ZX15-630-12-N	630	3	12.5	31.5	110	50	50	850	320	270	130	2	10	60/60
ZX15-800-12-N	800	3	12.5	31.5	110	50	50	850	320	270	130	2	10	60/60
ZX15-630-16-N	630	3	16	40	110	50	50	850	320	270	130	2	10	60/60
ZX15-800-16-N	800	3	16	40	110	50	50	850	320	270	130	2	10	60/60

27kV 50/60Hz	Ir A	Tk s	Isc kA	Ima kA	Up kV	Ud kV	μΩ	mm	mm	mm	kg	A	A	ms
ZX27-630-12-N	630	3	12.5	31.5	125	60	50	850	320	270	140	5	25	60/60
ZX27-800-12-N	800	3	12.5	31.5	125	60	50	850	320	270	140	5	25	60/60
ZX27-630-16-N	630	3	16	40	125	60	50	850	320	270	140	5	25	60/60
ZX27-800-16-N	800	3	16	40	125	60	50	850	320	270	140	5	25	60/60

38kV 50/60Hz	Ir A	Tk s	Isc kA	Ima kA	Up kV	Ud kV	μΩ	mm	mm	mm	kg	A	A	ms
ZX38-630-12-N	630	3	12.5	31.5	170	70	50	1290	320	350	150	5	40	60/60
ZX38-800-12-N	800	3	12.5	31.5	170	70	50	1290	320	350	150	5	40	60/60
ZX38-630-16-N	630	3	16	40	170	70	50	1290	320	350	150	5	40	60/60
ZX38-800-16-N	800	3	16	40	170	70	50	1290	320	350	150	5	40	60/60

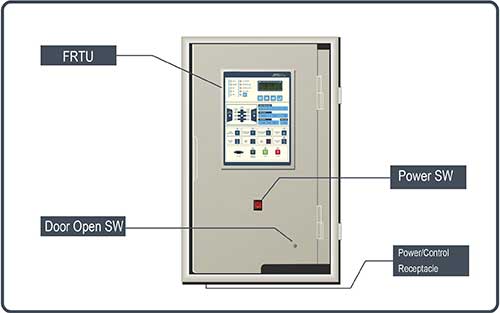

Recloser Controller

Main Function:

Fault detection(phase fault/ Earth fault/ SEF)
3-stage over current protection (direction or non-directional)
- Fast and delayed TC Trip elements for phase and earth fault
- 50 type of built-in TC Curves (IEC , ANSI , Reclose curves) and 4 Customized TC Curves
- Define time HCT (High Current Trip)
Negative sequence over-current protection
SEF (Sensitive earth fault) detection
Cold load protection (Pick-up adjustment)
Magnetizing inrush restraints
Sequence coordinination, Single shot tripping
Open Line Detection & Phase Sync Fail Detexction (Va-Vr)
(Source-side & Load-side)
Auto Reclosing (Up to 5 Shots)
4 setting groups, automatic setting group change depending on power flow
