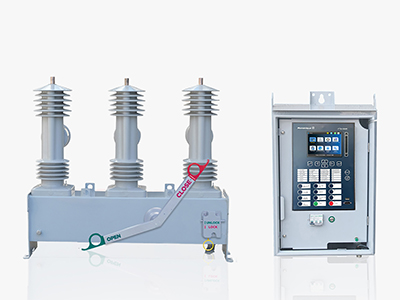

Embedded 2 voltage sensing capability for tie-point and renewable applications.
Proven modular design rated for 10,000 full load operations.
Hydrophobic Cycloaliphatic Epoxy insulation provides industry-leading reliability.
Supply communication networks with DNP3 Level 2, Modbus, and IEC 61850.
With 4 different setting groups, each is stored with individual setting values.
|
Rated Maximum Voltage (kV) |
15 |
27 |
|
Rated Continuous Current (A) |
400/630 |
630/400 |
|
Frequency (Hz) |
50/60 |
50/60 |
|
Rated Short-Time Current Withstand (rms, 3sec) (kA) |
12.5 |
12.5 |
|
Rated Peak Withstand Current (rms, asym) (kA) |
32.5 |
32.5 |
|
Rated Momentary Current, (rms, asym) (kA) |
32.5 |
32.5 |
|
100% Load Current Switching (A) |
630 |
630 |
|
50% Load Current Switching (A) |
315 |
315 |
|
10% Load Current Switching (A) |
63 |
63 |
|
Loop Current Switching (A) |
630 |
630 |
|
100% Cable Charging Current Switching (A) |
25 |
25 |
|
30% Cable Charging Current Switching (A) |
7.5 |
7.5 |
|
Line Charging Current Switching (A) |
1.5 |
1.5 |
|
Mechanical Operations Switching Performance (times) |
10000 |
10000 |
|
Impulse Withstand Voltage (1.2X50μs) (kV) |
150 |
110 |
|
Power Frequency Withstand Voltage (1 min) (kV) |
60 |
50 |
